产品名称：	HHH-300 浩瀚--氢气发生器
产品型号：	HHH-300
品牌：	1941
产品数量：
产品单价：	面议
日期:	2022-03-30

HHH-300 浩瀚--氢气发生器的详细资料

浩瀚--氢气发生器
浩瀚--氢气发生器 详细信息：

HHH-300/500型高纯氢发生器体积小，重量轻，流量大，设有开关阀，使用更方便。气路系统设计合理，无返碱液现象。流量数字显示，观察方便。

  特色与优势：

  1.操作简单，只需启动电源开关，即可产气，输出压力稳定，流量由 LED 数码显示，更直观醒目。

  2.日常使用只需补充蒸馏水，可连续使用，也可间断使用。

  3.储液、电解制氢、排氧一体化，池温低，使用寿命长久。

  4.设有不返液装置，可有效的确保仪器无返液现象。

  应用范围

  ，气相色谱仪，气相色谱仪-质谱仪，TCD，FID，FPD，NPD,做燃气，石油、化工、制药、酿酒、食品、环境检测、汽车、能源、科研、教育等领域

 技术参数

型 号	HHH-300 /500
输 出 流 量 (ml/min)	0-300 /500
输出压力（MPa）	0-0.4(可根据用户需求调节)
超压保护值（MPa）	0.45
氢气纯度（%）	>99.999
电源电压（V）	AC 220 110 50-60Hz
输出功率（W）	<150 /<260
外形尺寸（mm）	418*230*350
整机重量(Kg)	<12.5

浩瀚--氢气发生器  图片：




The vastness--hydrogen generator
Huohan--hydrogen generator Details:

HHH-300/500 type high-purity hydrogen generator is small in size, light in weight, large in flow rate, and equipped with an on-off valve, which is more convenient to use. The design of the gas circuit system is reasonable, and there is no phenomenon of returning lye. Flow digital display, easy to observe.

  Features and advantages:

  1. The operation is simple, just turn on the power switch to produce gas, the output pressure is stable, and the flow is digitally displayed by LED, which is more intuitive and eye-catching.

  2. Just add distilled water for daily use, which can be used continuously or intermittently.

  3. The liquid storage, electrolysis hydrogen production, and oxygen exhaust are integrated, the pool temperature is low, and the service life is long.

  4. Equipped with a non-return device, which can effectively ensure that the instrument does not return liquid.

  Scope of application

  , gas chromatograph, gas chromatograph-mass spectrometer, TCD, FID, FPD, NPD, gas, petroleum, chemical, pharmaceutical, wine, food, environmental testing, automotive, energy, scientific research, education and other fields

 technical parameter

  model



 HHH-300/500



  Output flow (ml/min)



  0-300 /500



  Output pressure (MPa)



  0-0.4 (can be adjusted according to user needs)



  Overpressure protection value (MPa)



  0.45



  Hydrogen purity (%)



  >99.999



   Power supply voltage (V)



  AC 220 110 50-60Hz



  Output power (W)



  <150 /<260



   Dimensions (mm)



  418*230*350



  Whole weight(Kg)



  <12.5

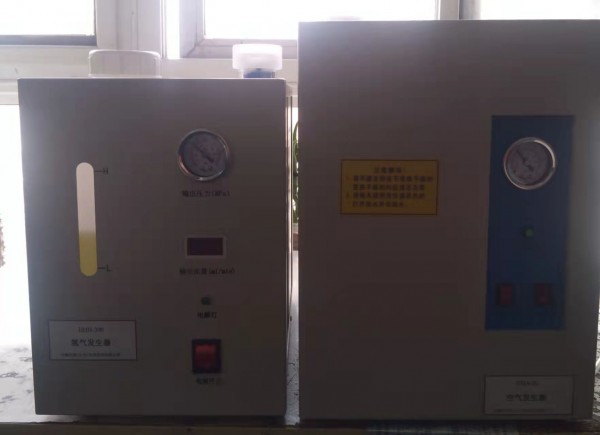

Huohan--Hydrogen Generator Picture:
